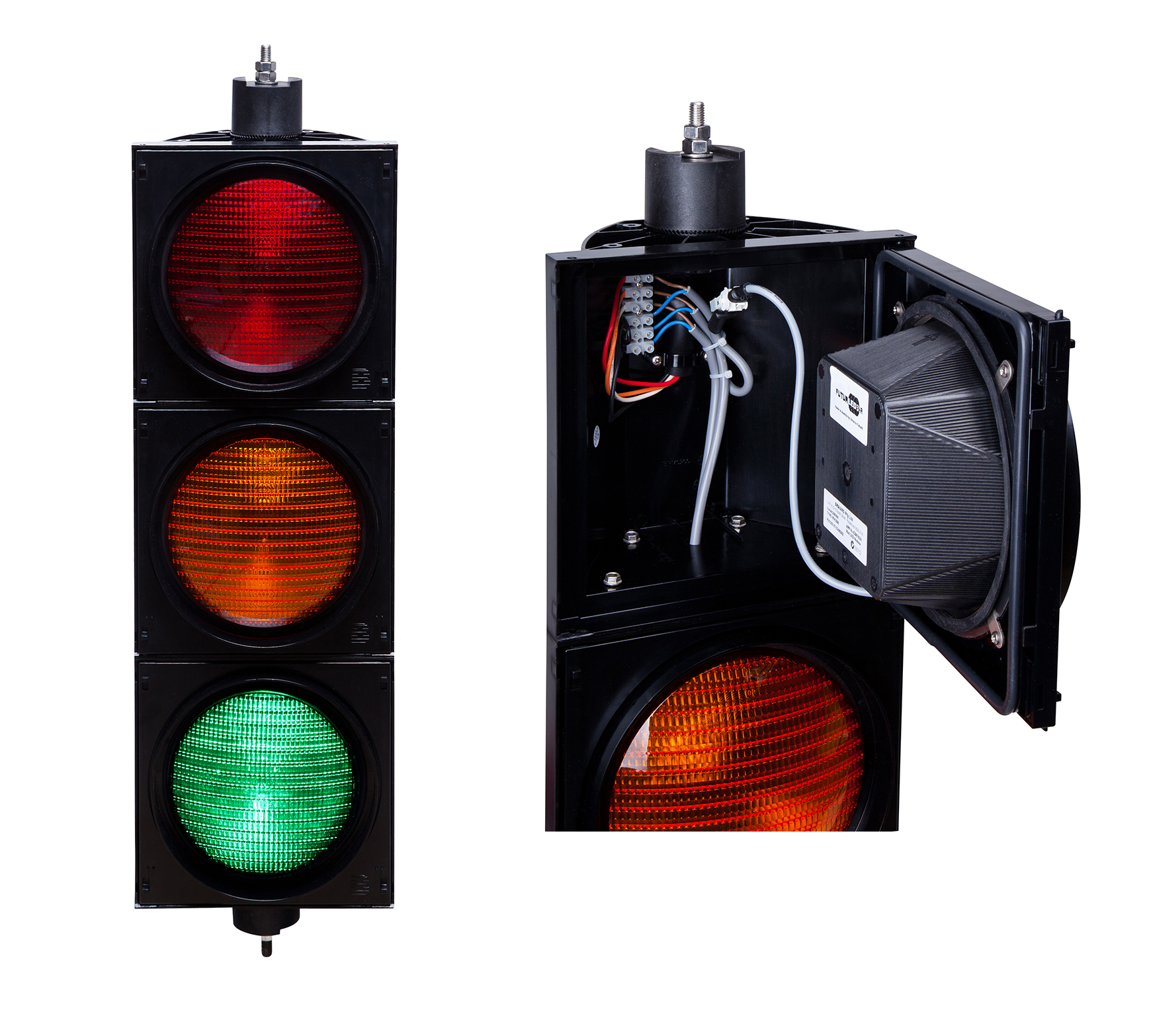

Traffic Signal Lantern

Brilliant Signal Displays

BRAUMS Traffic Signal Lanterns are lightweight, durable, and offer the highest standard in optical performance. With central light source technology and a dual lens system, these lanterns deliver a brilliant and uniform signal display with no visible LED dots. The addition of custom-made masks allows any symbol to be displayed.

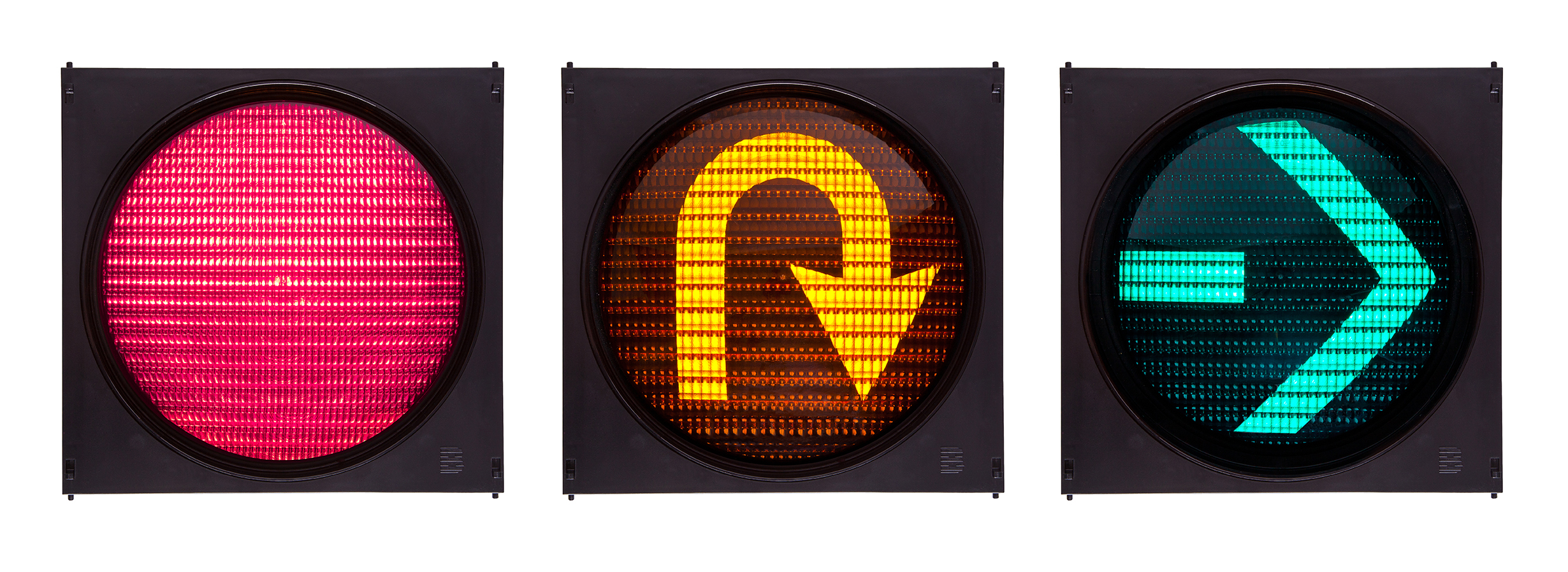

 Traffic Signal Modules

FUTURLED3R Technology

Utilising the FUTURLED3R optical system, each LED module has automatic light compensation in case of diode failure, as well as optimum heat dissipation to minimise degradation over time. Offering low power consumption, gradual and/or stepped dimming functionality and class 5 anti-phantom performance, over 5 million units have been installed worldwide.

Trusted and Approved

Currently in use across Australia, BRAUMS Traffic Signal Lanterns are type approved by Roads & Maritime Services NSW (RMS), VicRoads and Main Roads Western Australia.

Key Features:

  • AS2144:2002 compliant
  • Accommodates AS/NZS 2144 compliant accessories
  • IP35 rated housing & IP65 rated optical system
  • Injection Moulded UV Stabilised Polycarbonate or Pressure Diecast Aluminium housing
  • Modular assembly for flexible configuration
  • Available sizes: 100mm, 200mm & 300mm
  • Dual hinged doors for left or right opening
  • Available voltages: 12V / 24V DC & 24V / 42V / 230V AC
